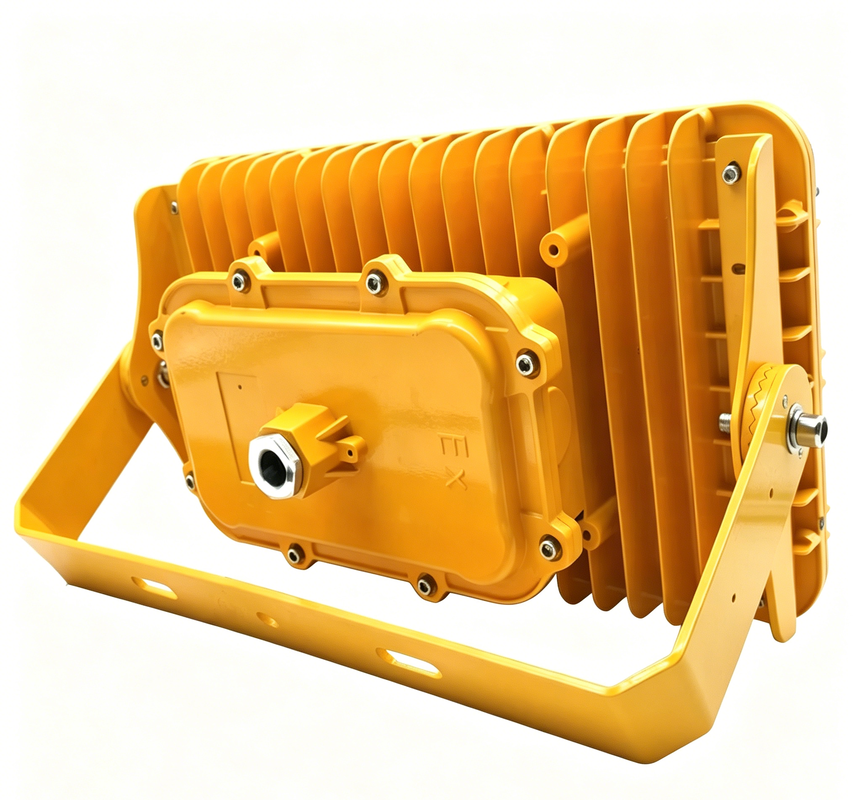

300W LED Explosion Proof Flood Light ATEX IIB T6 IP65 RFEPL8280 90° Beam LUMILEDS Aluminum Industrial Lighting
Λεπτομέρειες:
| Τόπος καταγωγής: | Γκουανγκντόνγκ, Κίνα |
| Μάρκα: | ECER |
| Πιστοποίηση: | ATEX Ex db mb IIB T6, CE, ROHS, CCC, ISO 9001:2015 |
| Αριθμό μοντέλου: | RFEPL8280-300W |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 10 τεμ |
|---|---|
| Τιμή: | Διαπραγματεύσιμα |
| Συσκευασία λεπτομέρειες: | Κουτί+ φυσαλίδα ή προσαρμοσμένο |
| Χρόνος παράδοσης: | 10-15 ημέρες ή επιβεβαιώστε |
| Όροι πληρωμής: | T/T, Western Union |
| Δυνατότητα προσφοράς: | 5000 τμχ/μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Εξουσία: | 300W | Απόδοση φωτός: | 100-120lm/w |
|---|---|---|---|
| Led chip: | LUMILEDS SMD | Γωνία δέσμης: | 90° |
| Τάση εισόδου: | AC 100-277V | Αξιολόγηση IP: | IP65 |
| CRI: | ≥80 | Συντελεστής ισχύος: | ≥0,95 |
| Υλικό: | Αλουμίνιο + σκληροποιημένο γυαλί | Σήμα αντιεκρηκτικό: | Ex db mb IIB T6 - IP65 - WF2 |
| Πιστοποίηση: | ATEX, CE, ROHS, CCC | Μέγεθος προϊόντος: | Μ425×Π240×Υ165mm |
| Καθαρό Βάρος: | 10,5 κιλά | Διάρκεια ζωής: | 50000h |
| Θερμοκρασία λειτουργίας: | -40°C έως +60°C | ||
| Επισημαίνω: | 300W explosion proof LED flood light,ATEX IIB T6 industrial lighting,LUMILEDS aluminum flood light |
||
Περιγραφή προϊόντων
300W LED Explosion Proof Flood Light - ATEX IIB T6 Certified
The RFEPL8280-300W is a 300W LED explosion proof flood light engineered with LUMILEDS SMD chip technology, delivering 100-120lm/W efficiency for demanding hazardous area applications. ATEX Ex db mb IIB T6 certified with IP65 protection, this floodlight combines high-performance illumination with robust safety engineering for Zone 1, Zone 2 gas and Zone 21, Zone 22 dust environments.
Key Features
- LUMILEDS SMD Chip Technology - Premium LED chips achieving 100-120lm/W efficiency with LM-80 tested performance
- ATEX IIB T6 Certified - Ex db mb IIB T6 explosion-proof rating suitable for IIA, IIB, IIC explosive atmospheres in temperature classes T1-T6
- 180° Adjustable Bracket - Flexible installation angle adjustment for optimal light positioning

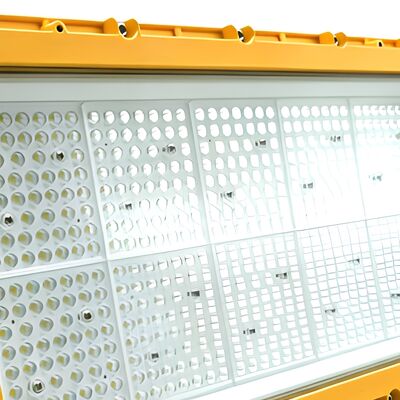

- High Transmittance Tempered Glass - Safety glass lens with excellent light transmission and impact resistance
- Stainless Steel Hardware - All fittings in high-quality stainless steel, passing 500-hour salt spray corrosion testing
- Die-Cast Fin Heat Dissipation - Advanced thermal management with high-conductivity aluminum substrate for rapid heat dissipation
- 6KV Lightning Protection - Built-in surge protection ensuring reliable operation in harsh electrical environments
- Multiple Beam Angles Available - 30°/60°/90° options with precise light distribution design, flood and spot configurations
- IP65 Waterproof - Sealed against dust ingress and water jets, suitable for outdoor and wash-down environments
- Universal Voltage - AC 100-277V input with power factor ≥0.95, compatible with global electrical systems
Versatile Mounting Options
The RFEPL8280 series supports six mounting configurations: ceiling mount, boom mount, bracket mount, wall mount, flange mount, and guardrail mount.
Applications
Oil extraction and refining facilities
Chemical processing and storage plants
Offshore oil platforms and FPSOs
Military and defense installations
Electric power generation stations
Combustible dust environments (Zone 21, Zone 22)
Normal and emergency lighting in hazardous areas
Technical Specifications
| Model Number | RFEPL8280-300W |
| Item No. | RFEPL8280 |
| Power | 300W |
| Light Efficiency | 100-120lm/W |
| LED Chip | LUMILEDS SMD (LM-80) |
| Power Supply | AC 100-277V 50/60Hz |
| Beam Angle | 30° / 60° / 90° (configurable) |
| CRI | ≥80 |
| Power Factor | ≥0.95 |
| Explosion-Proof Mark | Ex db mb IIB T6 - IP65 - WF2 |
| Lightning Protection | 6KV |
| Material | Aluminum + Tempered Glass |
| IP Rating | IP65 |
| Finish | Painting Yellow / Grey |
| Product Size | L425 × W240 × H165mm |
| Net Weight | 10.5kg |
| Mounting | Ceiling / Boom / Bracket / Wall / Flange / Guardrail |
| Certification | ATEX, CE, ROHS, CCC |
| Lifetime | 50,000 Hours |
| Operating Temperature | -40°C to +60°C |
Why Choose RFEPL8280 Series?
The RFEPL8280 explosion proof LED flood light series delivers industrial-grade reliability with LUMILEDS chip technology and ATEX certification. Each unit undergoes 500-hour salt spray testing with all-stainless-steel hardware, ensuring decades of corrosion-resistant service. With six mounting options and configurable beam angles, the RFEPL8280 adapts to the most demanding hazardous area lighting requirements.
For volume pricing, OEM customization, or technical specifications, please contact our sales team.
